10.36 inch strip screen 720*1600 LCD screen MIPI agricultural machinery instrument engineering vehicle instrument navigation display panel

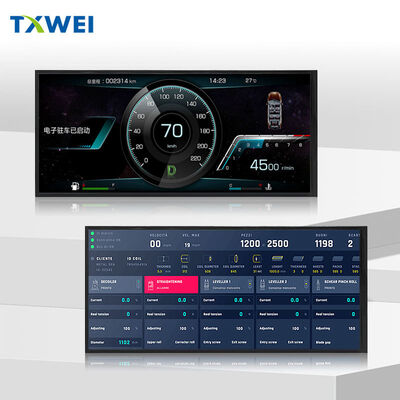

TXW990002B0 10.36-inch industrial grade IPS display screen

Automotive and industrial control display experts born for harsh environments

Core strengths

Industrial grade wide temperature design
The working temperature covers from -30°C to+80°C, and the storage temperature reaches from -30°C to+85°C. Whether it is the extremely cold northern winter or the hot desert environment, the screen always maintains stable operation, specially designed for outdoor and semi outdoor scenes such as car instruments, truck navigation, agricultural machinery equipment, etc.

IPS Full View HD Display

10.36-inch ultra wide screen design, resolution of 720×1600, paired with 600nits high brightness. IPS technology ensures a wide viewing angle of 178° without color deviation, and remains clear and readable under strong light. Driving information is clear at a glance, providing greater safety assurance.

G+G capacitive touch solution

Adopting industry-leading G+G (glass+glass) touch technology, it has high surface hardness, wear resistance, and excellent light transmittance. Built in GT9271 professional touch chip, IIC interface protocol, sensitive and accurate touch response, supports multi touch, smooth and responsive operation.

Stable and reliable interface configuration

The display interface adopts MIPI 40 PIN standard and the driver chip JD9365DA, which is compatible with mainstream automotive and industrial control motherboard solutions, easy to integrate, and has a short development cycle.

Specifications

Screen size: 10.36 inches
Resolution: 720 × 1600
Display technology: IPS full view angle
Brightness: 600 nits
Driver chip: JD9365DA
Display interface: MIPI 40 PIN
Dimensions: 115.36 × 251.06 × 4.70 mm (single screen)
Module size: 124 × 266 × 6.75 mm (including touch screen)
Touch technology: G+G capacitive
Touch interface: IIC
Touch chip: GT9271

Application scenarios

Automotive intelligent cockpit - LCD instrument panel, central control navigation, 360° panoramic view, vertical screen design in line with modern cockpit layout.
Commercial vehicle navigation - truck and truck road condition display, high brightness anti glare, safe and worry free long-distance driving.
Agricultural machinery equipment - tractor harvester intelligent terminal, resistant to vibration and dust, stable operation in field operations.
Bus electronic rearview mirror - replacing optical rearview mirrors, IPS full view eliminates blind spots, and automatically anti glare at night.
Industrial control panel - embedded with PLC and CNC machine tools, resistant to oil stains and scratches, capable of continuous operation 24/7.
Mobile medical devices - portable monitors, field first aid, wide temperature adaptability to temperature differences, wearing gloves for precise touch control.

Why choose us

Vehicle grade reliability, industrial grade wide temperature range, high brightness IPS display, precise G+G touch control
Provide clear visibility for your smart terminal around the clock and in all scenarios.
Contact us for samples and technical support
